NET.Lock - Networked locker lock

The RFID-based innovation GAT NET.Lock is an electronic, alarm-secured locker lock that is operated contactlessly using various data carriers. It is maintenance-free, PC-manageable, and integrable into many management systems. A unique feature is its support for both 13.56 MHz and 125 kHz RFID technologies as well as NFC. Additionally, the latest version of GAT NET.Lock offers USB A and C ports and interior lighting for various types of cabinets. Management is done via the eLoxx Suite software solution, allowing for central authorization of openings and monitoring of usage. The system features an integrated tamper alarm and provides a high level of security.

Convenience

Intuitive operation and added value functions, e.g. USB charging function and light ensure comfort.

Easier management

Full control and overview of the central management software eLoxx Suite.

Maximum flexibility

The system is compatible with all common RFID standards and is suitable for all locker materials.

NET.Lock

Highlights

Flexible

Flexible bolt – adapts to door tolerances

Multi-RFID

Multi-RFID technology reader

USB Charging

2 x USB charging ports and LED Light, optional

Robust & user-friendly

Robust mechanics and colored LED for lock status.

Increased Revenue

Increase revenue with rented lockers.

Easy installation

Power supply, Plug & Play connector installation

Product information

Frequently Asked Questions

FAQ

In the Relaxx under Hardware Overview, click on Advanced Configuration.

then:

  • GC7 + GT7 Central Locker

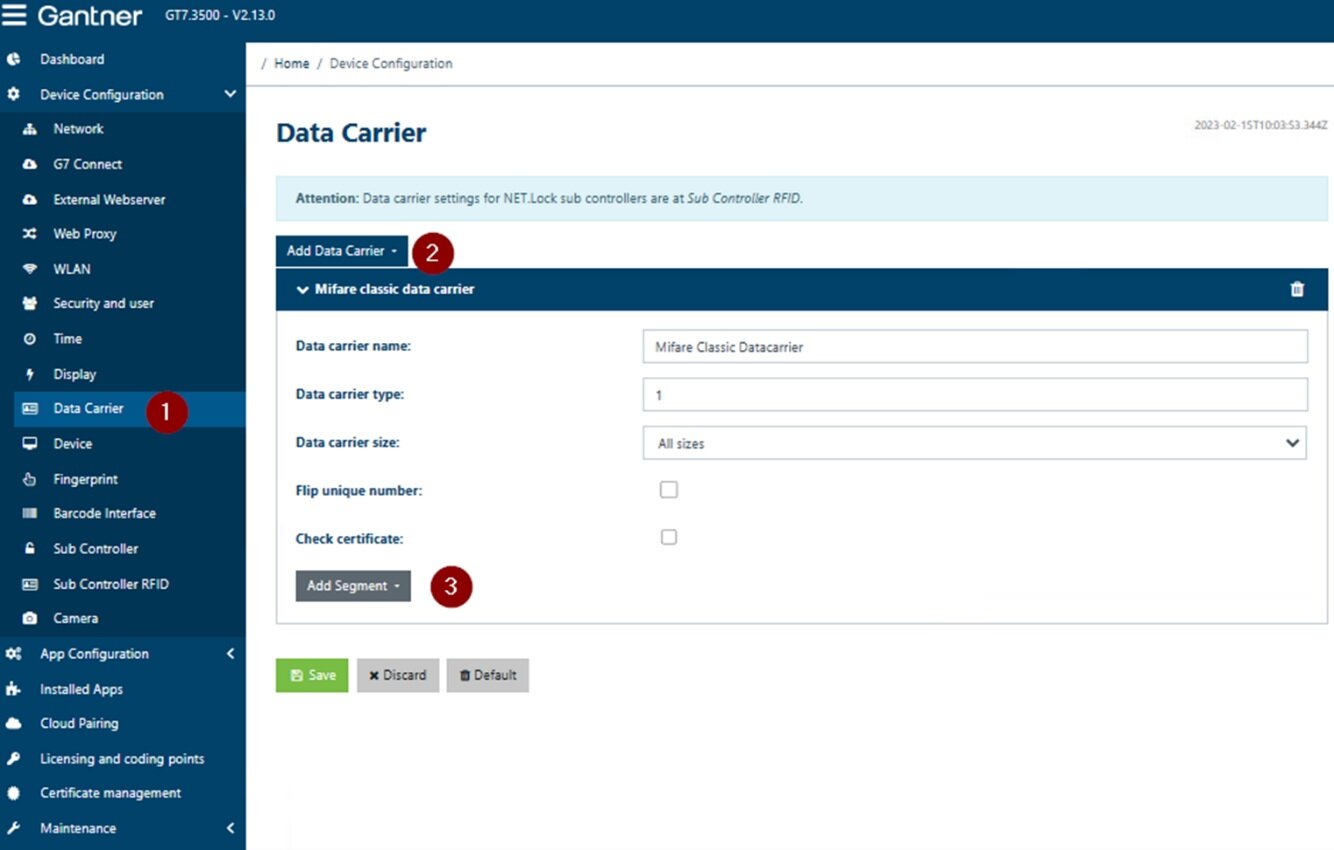

  • 1. Click on "Data Carrier".
    2. Expand the drop-down menu "Add Data Carrier" and add data carrier.
    3. Use the drop-down menu “Add Segment” to configure the required segments.

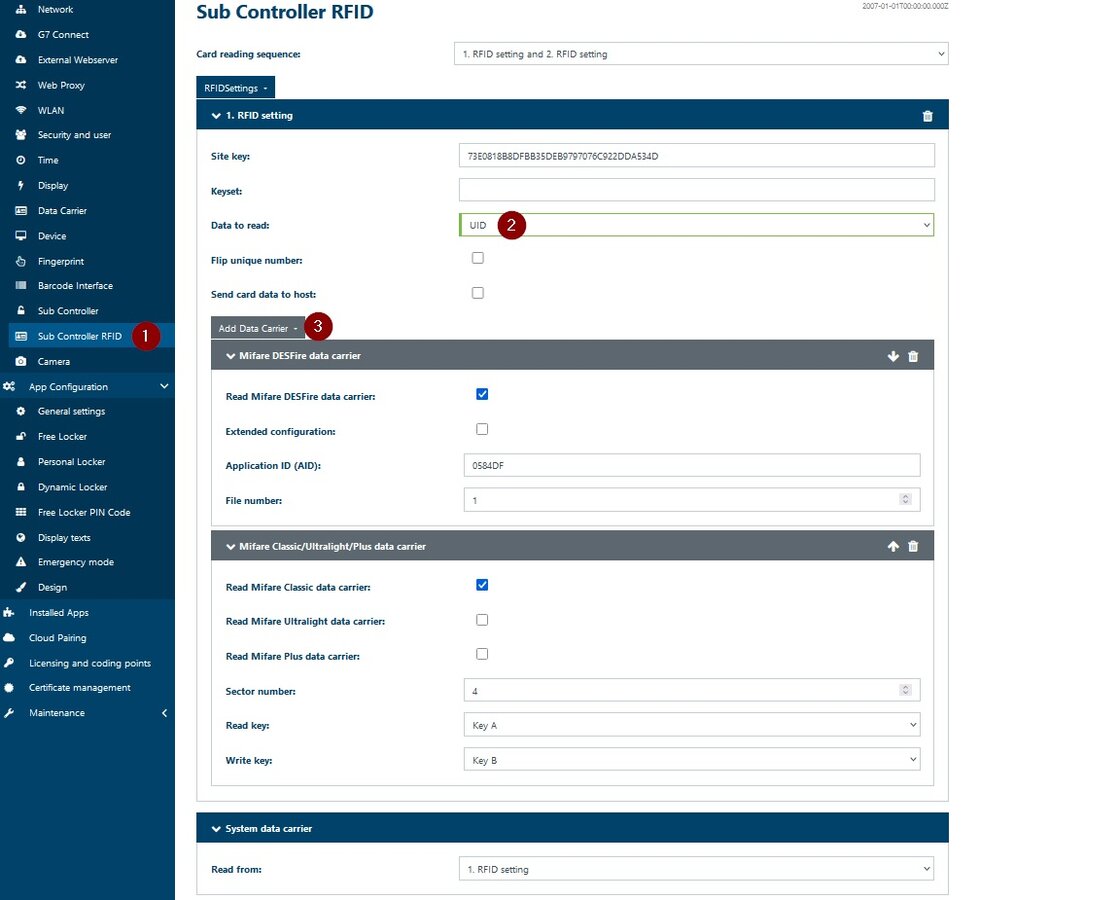

  • 1. Click on "Sub Controller RFID".
    2. Expand the drop-down menu "Data to read" and add "UID".
    3. Expand the drop-down menu "Add Data Carrier" and add technology "MiFare".

  • NET.Lock M70x0

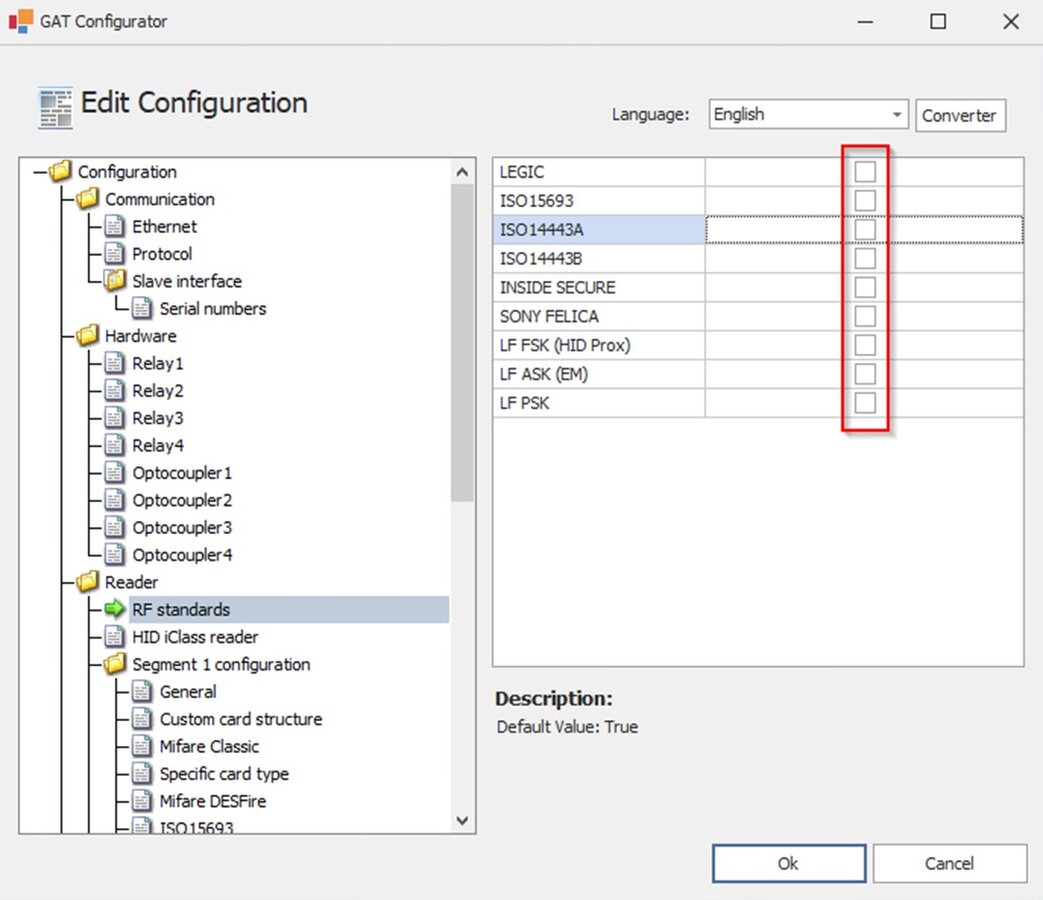

  • 1. Select “RF standards”.
    2. Select the technology of used data carriers.

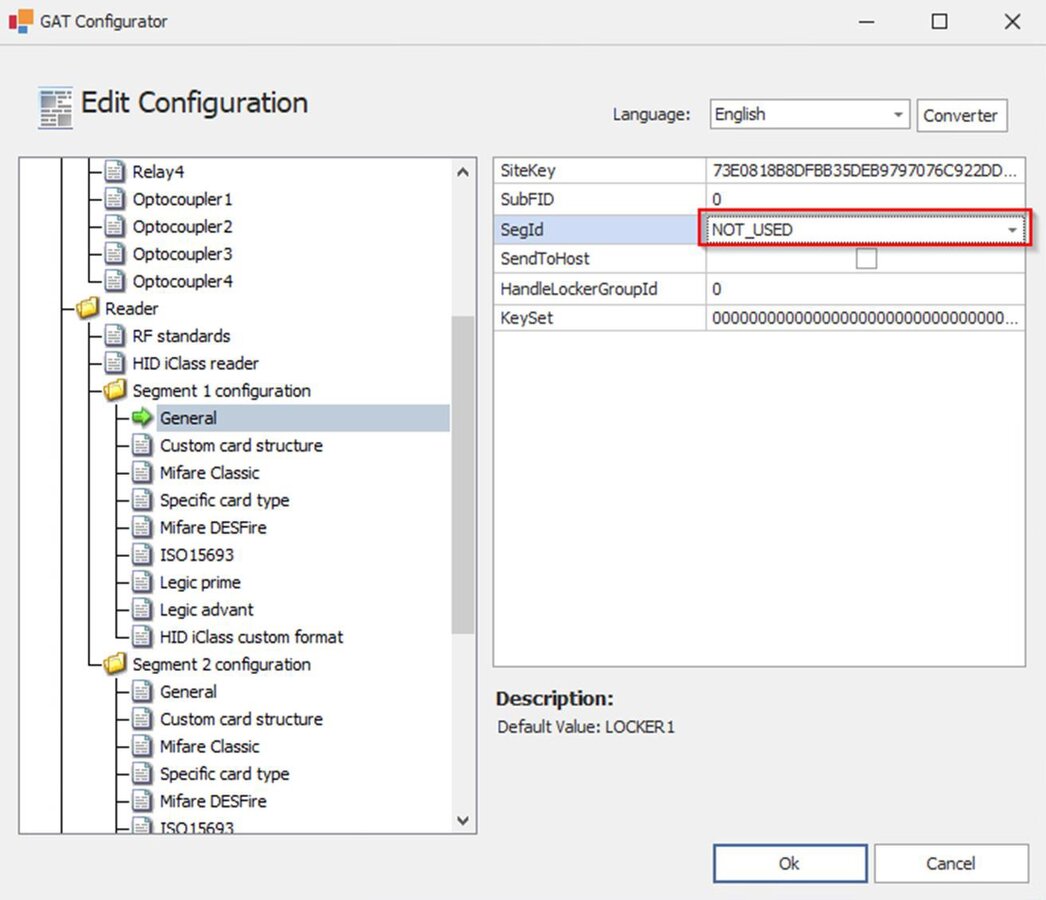

  • 1. Select "General".
    2. Set Segment ID "SegId" to "NOT_USED".
    "NOT_USED" means that no data area is read.

If you receive a theft report, please follow the appropriate steps outlined below:

Steps:
  1. Take note of the reported theft incident.

  2. Proceed to the customer's location along with the Basic Set (applicable to GAT NET.Lock systems with a master card) of the lock.

  3. Check the locker for visible damage. Determine if an alarm has been triggered or if any tampering has occurred.

  4. Read and evaluate the booking records, and look for suspicious entries or indications of manipulation log such as:

    • The UID of the last closure or opening

    • The use of a master card

  5. Depending on the severity and circumstances of the theft, consider reporting the incident to the police for insurance purposes.

  6. Assess the functionality of the locker in question.

    Determine if it requires repairs or if temporary deactivation is necessary to prevent further unauthorized access.
